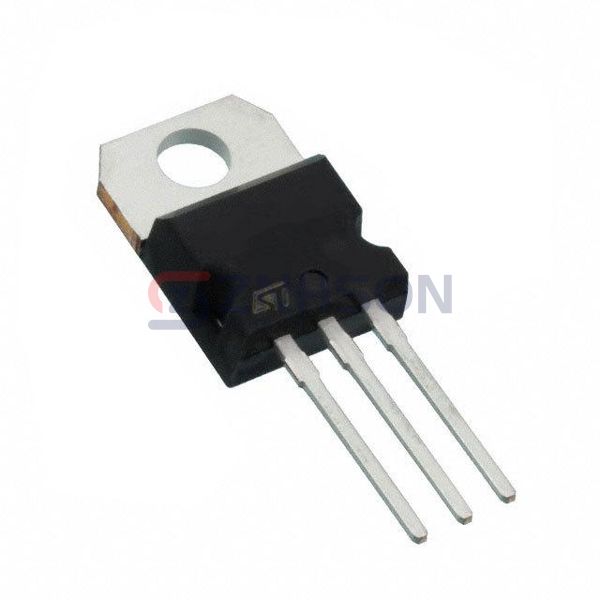

STPS40SM120CTN
STMicroelectronics
STMicroelectronics
DIODE ARRAY SCHOTTKY 120V TO220
$2.92
Available to order
Reference Price (USD)
1+
$3.13000
50+
$2.68400
100+
$2.35400
500+
$2.03500
1,000+
$1.74900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the STPS40SM120CTN diode rectifier array by STMicroelectronics, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. STMicroelectronics delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Obsolete
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 120 V
- Current - Average Rectified (Io) (per Diode): 20A
- Voltage - Forward (Vf) (Max) @ If: 830 mV @ 20 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 275 µA @ 120 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB Narrow Leads
