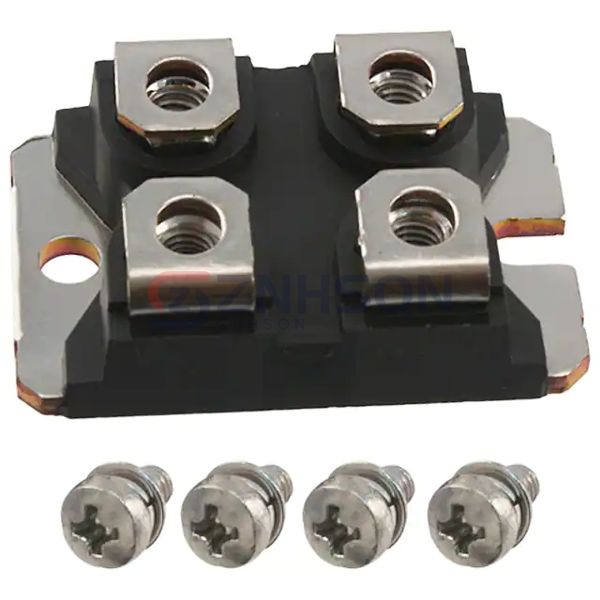

STPS80H100TV
STMicroelectronics
STMicroelectronics
DIODE MODULE 100V 40A ISOTOP
$21.51
Available to order
Reference Price (USD)
1+
$24.64000
10+
$22.72700
100+
$19.40740
500+
$17.61984
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the STPS80H100TV by STMicroelectronics represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With STMicroelectronics's patented junction design, the STPS80H100TV achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 2 Independent
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io) (per Diode): 40A
- Voltage - Forward (Vf) (Max) @ If: 780 mV @ 40 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 20 µA @ 100 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Chassis Mount
- Package / Case: ISOTOP
- Supplier Device Package: ISOTOP®
