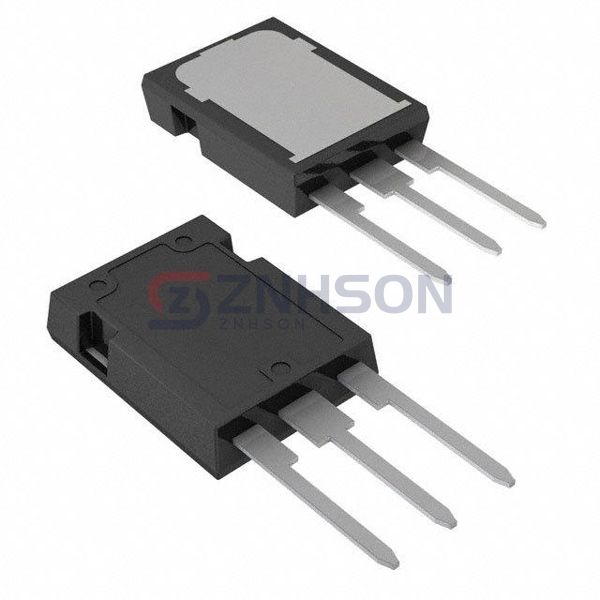

STTH8003CY
STMicroelectronics
STMicroelectronics
DIODE ARRAY GP 300V 40A MAX247
$10.78
Available to order
Reference Price (USD)
1+
$10.78000
30+
$9.28867
120+
$8.06517
510+
$7.02306
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STTH8003CY from STMicroelectronics is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose STMicroelectronics's STTH8003CY for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Obsolete
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 300 V
- Current - Average Rectified (Io) (per Diode): 40A
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 40 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 60 ns
- Current - Reverse Leakage @ Vr: 80 µA @ 300 V
- Operating Temperature - Junction: 175°C (Max)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: MAX247™
