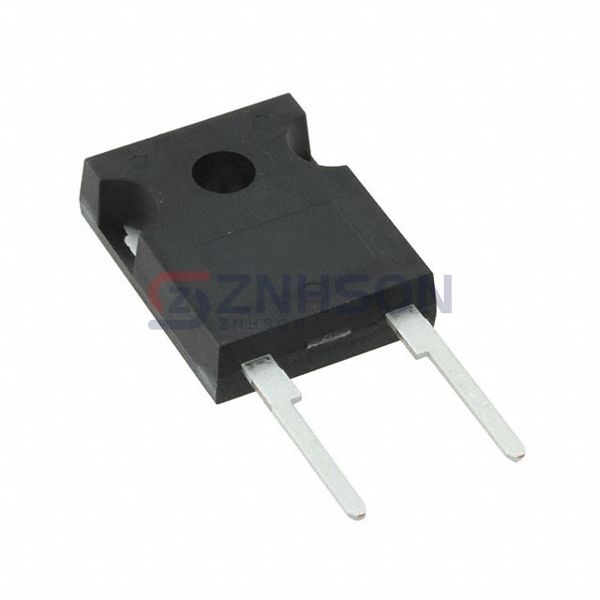

STTH80S06W
STMicroelectronics
STMicroelectronics
DIODE GEN PURP 600V 80A DO247
$0.00
Available to order
Reference Price (USD)
1+
$3.95000
30+
$3.35267
120+
$2.90550
510+
$2.47339
1,020+
$2.08600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STTH80S06W from STMicroelectronics is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. STMicroelectronics's dedication to quality means the STTH80S06W meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 600 V
- Current - Average Rectified (Io): 80A
- Voltage - Forward (Vf) (Max) @ If: 2.2 V @ 20 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 75 ns
- Current - Reverse Leakage @ Vr: 50 µA @ 600 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: DO-247-2 (Straight Leads)
- Supplier Device Package: DO-247
- Operating Temperature - Junction: -40°C ~ 175°C
