STW26N60M2
STMicroelectronics
STMicroelectronics
MOSFET N-CH 600V 20A TO247
$3.91
Available to order
Reference Price (USD)
600+
$2.47970
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the STW26N60M2 single MOSFET from STMicroelectronics. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust STMicroelectronics's STW26N60M2 for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 165mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 34 nC @ 10 V
- Vgs (Max): ±25V
- Input Capacitance (Ciss) (Max) @ Vds: 1360 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 169W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3
- Package / Case: TO-247-3
Related Products
Vishay Siliconix
IRFBC30ALPBF
Vishay Siliconix
SQJ868EP-T1_BE3
Harris Corporation
IRFD213
Infineon Technologies
IPP60R160C6XKSA1
STMicroelectronics
STI76NF75
STMicroelectronics
STDLED656
onsemi
FDMC8360L
Rohm Semiconductor

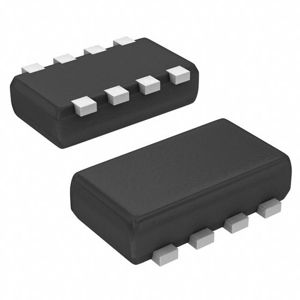

RT1A040ZPTR
Sanyo

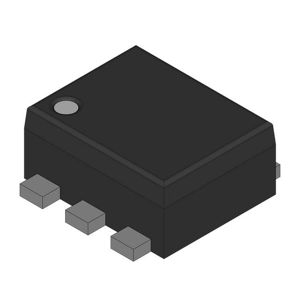

MCH6336-TL-E
