TFC-105-02-F-D
Samtec Inc.
Samtec Inc.
.050 X .050 TERMINAL STRIP
$2.78
Available to order
Reference Price (USD)
1+
$1.71000
10+
$1.55600
100+
$1.33350
500+
$1.11126
1,000+
$0.95250
5,000+
$0.84455
10,000+
$0.82550
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

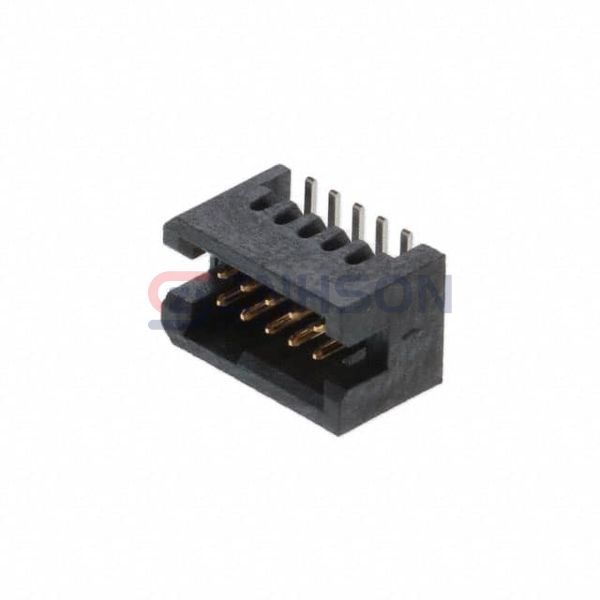

Discover the TFC-105-02-F-D rectangular connector header from Samtec Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the TFC-105-02-F-D adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Samtec Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.131" (3.33mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.226" (5.74mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.1A per Contact
- Voltage Rating: 275VAC
