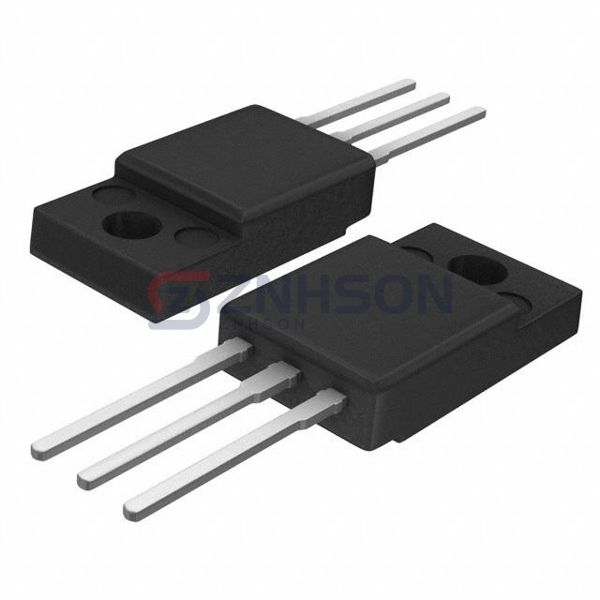

TIG056BF-1E
onsemi
onsemi
IGBT 430V TO220F-3FS
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TIG056BF-1E from onsemi is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose TIG056BF-1E for superior performance in your next power electronics project.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 430 V
- Current - Collector (Ic) (Max): -
- Current - Collector Pulsed (Icm): 240 A
- Vce(on) (Max) @ Vge, Ic: 5V @ 15V, 240A
- Power - Max: 30 W
- Switching Energy: -
- Input Type: Standard
- Gate Charge: -
- Td (on/off) @ 25°C: 46ns/140ns
- Test Condition: 320V, 240A, 10Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220F-3FS
