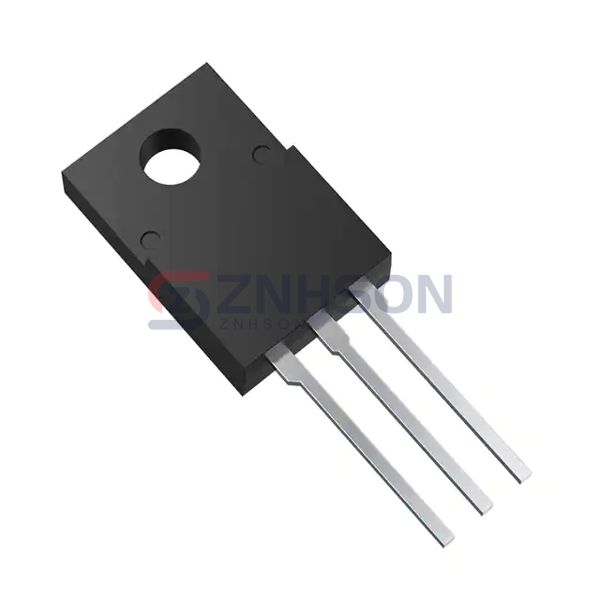

TK72A12N1,S4X
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N-CH 120V 72A TO220SIS
$3.15
Available to order
Reference Price (USD)
1+
$3.01000
50+
$2.43000
100+
$2.18700
500+
$1.70100
1,000+
$1.40940
2,500+
$1.36080
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the TK72A12N1,S4X by Toshiba Semiconductor and Storage, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the TK72A12N1,S4X is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 120 V
- Current - Continuous Drain (Id) @ 25°C: 72A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 4.5mOhm @ 36A, 10V
- Vgs(th) (Max) @ Id: 4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 130 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 8100 pF @ 60 V
- FET Feature: -
- Power Dissipation (Max): 45W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220SIS
- Package / Case: TO-220-3 Full Pack
