TMM-108-06-S-D
Samtec Inc.
Samtec Inc.
2MM TERMINAL STRIP
$5.09
Available to order
Reference Price (USD)
1+
$2.93000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

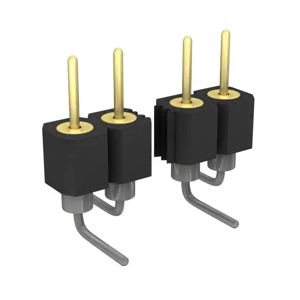

Enhance your electronic assemblies with the TMM-108-06-S-D rectangular connector header from Samtec Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the TMM-108-06-S-D meets the highest industry standards. Samtec Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.126" (3.20mm)
- Contact Length - Post: 0.192" (4.88mm)
- Overall Contact Length: 0.377" (9.58mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3.2A per Contact
- Voltage Rating: -
