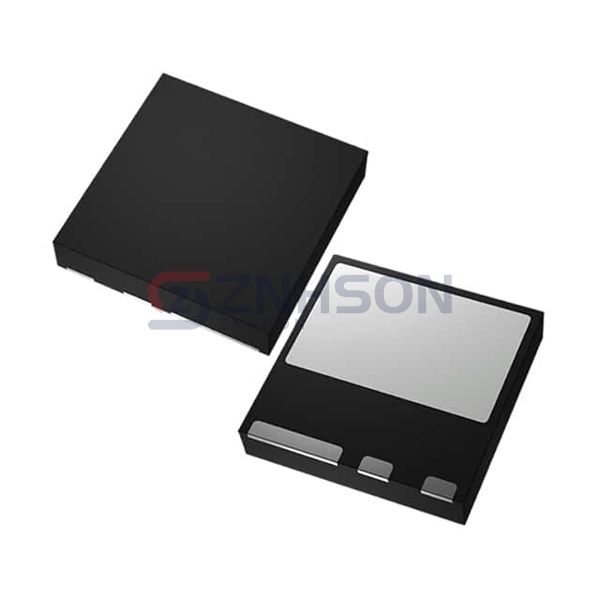

TPH3206LD
Transphorm
Transphorm
GANFET N-CH 600V 17A PQFN
$0.00
Available to order
Reference Price (USD)
1+
$11.40000
10+
$10.26000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the TPH3206LD by Transphorm, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the TPH3206LD is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: GaNFET (Gallium Nitride)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 17A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 180mOhm @ 11A, 8V
- Vgs(th) (Max) @ Id: 2.6V @ 500µA
- Gate Charge (Qg) (Max) @ Vgs: 9.3 nC @ 4.5 V
- Vgs (Max): ±18V
- Input Capacitance (Ciss) (Max) @ Vds: 760 pF @ 480 V
- FET Feature: -
- Power Dissipation (Max): 96W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PQFN (8x8)
- Package / Case: 4-PowerDFN
