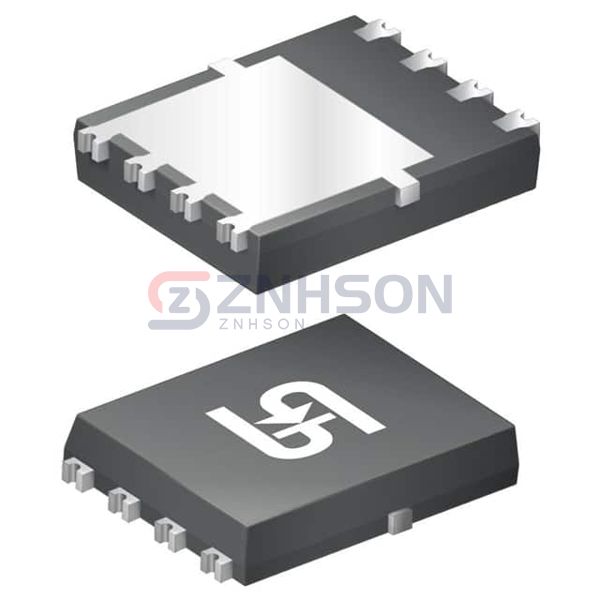

TQM070NB04CR RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CH 40V 15A/75A 8PDFNU
$3.15
Available to order
Reference Price (USD)
1+
$3.15000
500+
$3.1185
1000+
$3.087
1500+
$3.0555
2000+
$3.024
2500+
$2.9925
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the TQM070NB04CR RLG by Taiwan Semiconductor Corporation, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the TQM070NB04CR RLG is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 15A (Ta), 75A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 7V, 10V
- Rds On (Max) @ Id, Vgs: 7mOhm @ 15A, 10V
- Vgs(th) (Max) @ Id: 3.8V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 42 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3125 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta), 83W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount, Wettable Flank
- Supplier Device Package: 8-PDFNU (5x6)
- Package / Case: 8-PowerTDFN
