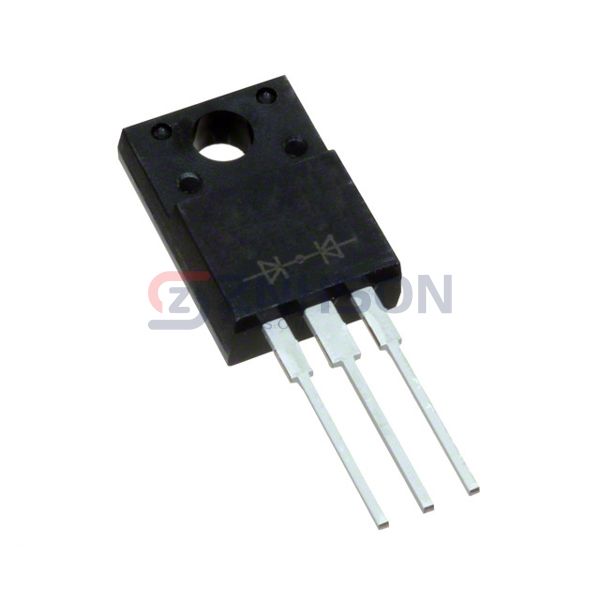

TSF10H120C
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ARRAY SCHOTT 120V ITO220AB
$1.00
Available to order
Reference Price (USD)
1+
$0.99847
500+
$0.9884853
1000+
$0.9785006
1500+
$0.9685159
2000+
$0.9585312
2500+
$0.9485465
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSF10H120C from Taiwan Semiconductor Corporation sets new benchmarks in the Discrete Semiconductor Products market. This rectifier array incorporates advanced epitaxial growth technology for superior reverse recovery characteristics. Perfect for high-efficiency adapters, induction heating, and plasma cutting equipment, it offers outstanding thermal cycling performance. Taiwan Semiconductor Corporation's rigorous quality control ensures the TSF10H120C maintains consistent parameters across production batches for design-in reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 120 V
- Current - Average Rectified (Io) (per Diode): 5A
- Voltage - Forward (Vf) (Max) @ If: 740 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 100 µA @ 120 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack, Isolated Tab
- Supplier Device Package: ITO-220AB
