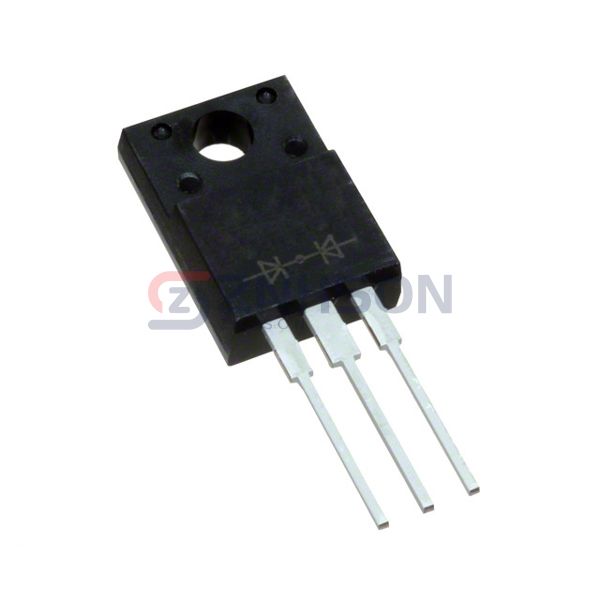

TSF30L120C
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ARRAY SCHOTT 120V ITO220AB
$1.20
Available to order
Reference Price (USD)
1+
$1.20135
500+
$1.1893365
1000+
$1.177323
1500+
$1.1653095
2000+
$1.153296
2500+
$1.1412825
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSF30L120C from Taiwan Semiconductor Corporation sets new benchmarks in the Discrete Semiconductor Products market. This rectifier array incorporates advanced epitaxial growth technology for superior reverse recovery characteristics. Perfect for high-efficiency adapters, induction heating, and plasma cutting equipment, it offers outstanding thermal cycling performance. Taiwan Semiconductor Corporation's rigorous quality control ensures the TSF30L120C maintains consistent parameters across production batches for design-in reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 120 V
- Current - Average Rectified (Io) (per Diode): 15A
- Voltage - Forward (Vf) (Max) @ If: 880 mV @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 250 µA @ 120 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack, Isolated Tab
- Supplier Device Package: ITO-220AB
