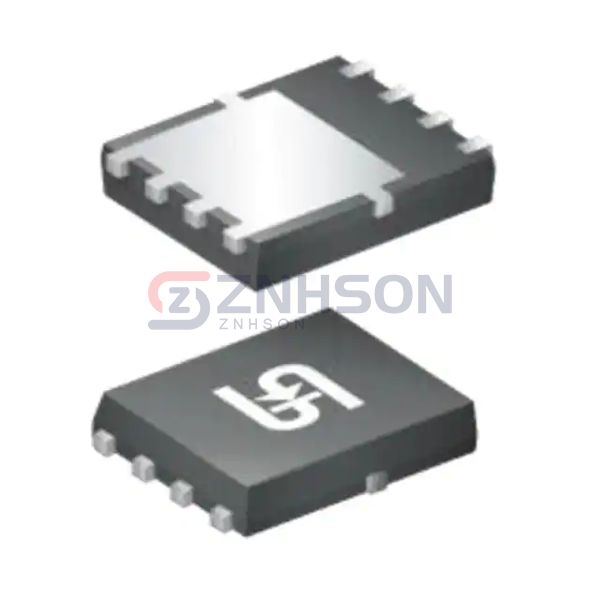

TSM025NB04CR RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CH 40V 24A/161A 8PDFN
$3.55
Available to order
Reference Price (USD)
2,500+
$0.65520
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the TSM025NB04CR RLG by Taiwan Semiconductor Corporation, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The TSM025NB04CR RLG stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Taiwan Semiconductor Corporation.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 24A (Ta), 161A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 2.5mOhm @ 24A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 113 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 7150 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta), 136W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PDFN (5x6)
- Package / Case: 8-PowerTDFN
Related Products
Infineon Technologies
BSC900N20NS3GATMA1
IXYS
IXFA16N60P3
IXYS
IXTR32P60P
Vishay Siliconix
SUD19P06-60-E3
Rectron USA
RM185N30DF
onsemi
NVMYS4D1N06CLTWG
Fairchild Semiconductor
SFR9024TF
onsemi

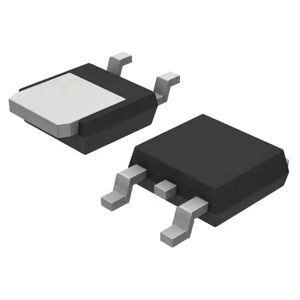

FDD86252
