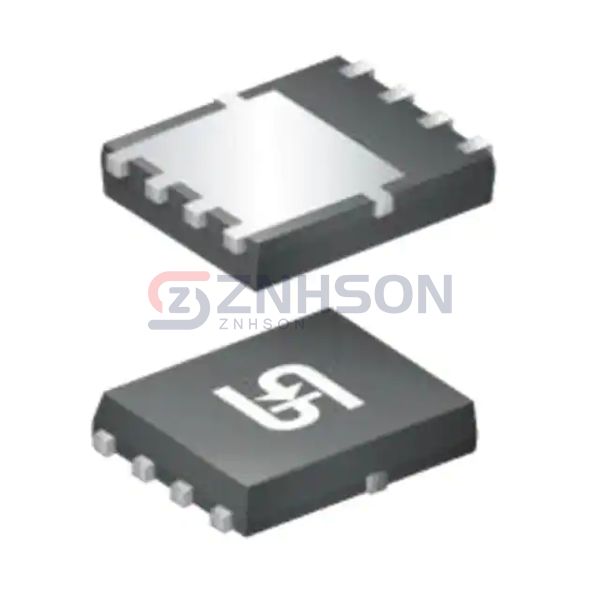

TSM025NB04LCR RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CH 40V 24A/161A 8PDFN
$3.64
Available to order
Reference Price (USD)
2,500+
$0.65520
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM025NB04LCR RLG single MOSFET from Taiwan Semiconductor Corporation is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the TSM025NB04LCR RLG is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 24A (Ta), 161A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 2.5mOhm @ 24A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 112 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 6435 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta), 136W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PDFN (5x6)
- Package / Case: 8-PowerTDFN
Related Products
Micro Commercial Co
BSS138-TP
Infineon Technologies
IRLR3636TRLPBF
onsemi
NTGS4111PT1G
Nexperia USA Inc.
PMV20XNER
Rohm Semiconductor
RS1E180BNTB
Infineon Technologies
IPP80N06S407AKSA2
Renesas Electronics America Inc

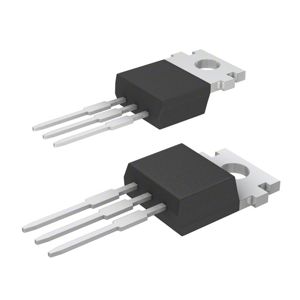

RJK1003DPN-A0#T2
