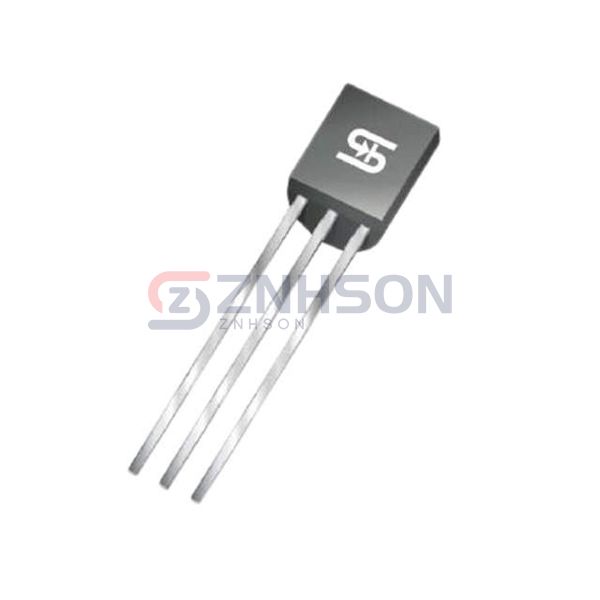

TSM1NB60SCT B0G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CH 600V 500MA TO92
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the TSM1NB60SCT B0G by Taiwan Semiconductor Corporation, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the TSM1NB60SCT B0G is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 500mA (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 10Ohm @ 250mA, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6.1 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 138 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-92
- Package / Case: TO-226-3, TO-92-3 (TO-226AA)
