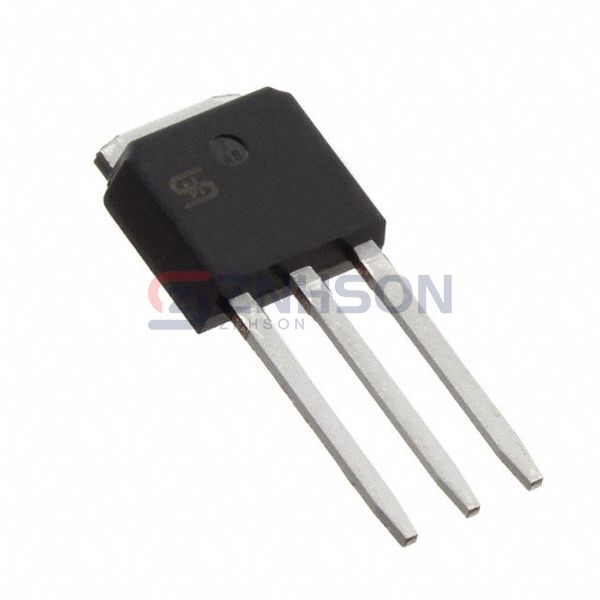

TSM3N80CH C5G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CHANNEL 800V 3A TO251
$0.00
Available to order
Reference Price (USD)
1+
$1.39000
10+
$1.23300
100+
$0.97490
500+
$0.75602
1,875+
$0.59685
3,750+
$0.55706
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM3N80CH C5G by Taiwan Semiconductor Corporation is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the TSM3N80CH C5G is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 3A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 4.2Ohm @ 1.5A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 19 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 696 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 94W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-251 (IPAK)
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
Related Products
STMicroelectronics
STB23NM60ND
Infineon Technologies
BSP129E6327T
onsemi
NTB125N02RT4G
Infineon Technologies
IPP80N06S2-H5
Infineon Technologies
IRF7809TR
Diodes Incorporated
ZXMN6A11GTC
NXP USA Inc.
PHP45NQ10TA,127
Infineon Technologies

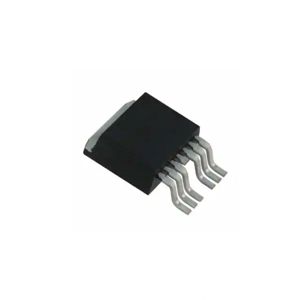

IPB180N06S4H1ATMA1
