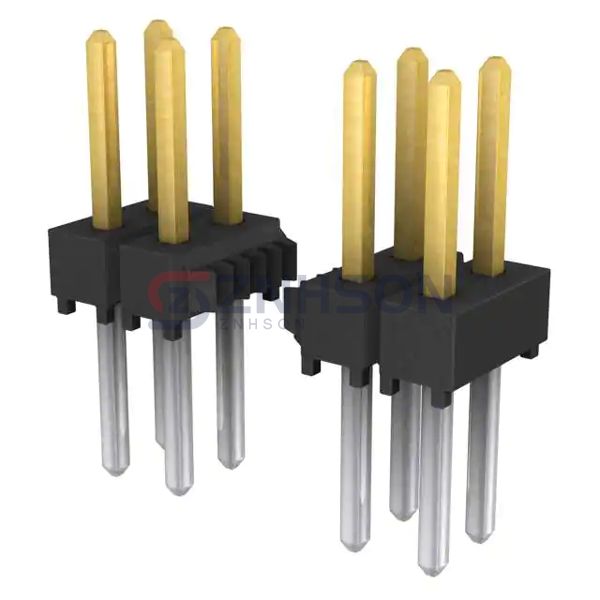

TSW-140-08-S-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 80POS 2.54MM
$14.69
Available to order
Reference Price (USD)
1+
$14.69000
500+
$14.5431
1000+
$14.3962
1500+
$14.2493
2000+
$14.1024
2500+
$13.9555
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSW-140-08-S-D male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 80
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.200" (5.08mm)
- Overall Contact Length: 0.530" (13.46mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Mill-Max Manufacturing Corp.
802-10-020-20-001000
HARTING
09185306904
Sullins Connector Solutions
PREC010SAAN-RC
Amphenol ICC (FCI)
92417-114HLF
Sullins Connector Solutions
GBC15DABN-M30
Samtec Inc.
TMM-123-04-T-D
Sullins Connector Solutions
PRPC031DABN-RC
Amphenol ICC (FCI)

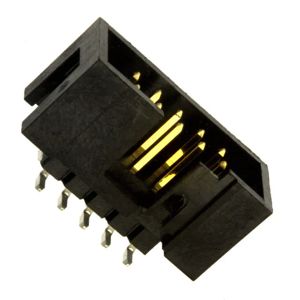

52601-S10-8LF
Preci-Dip

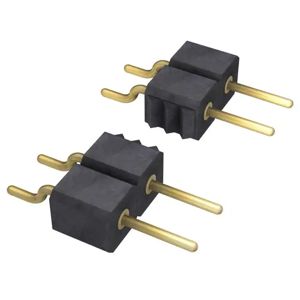

800-10-056-40-001101
