TZM5232B-GS18
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ZENER 5.6V 500MW SOD80
$0.24
Available to order
Reference Price (USD)
10,000+
$0.03122
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TZM5232B-GS18 by Vishay General Semiconductor - Diodes Division is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the TZM5232B-GS18 is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 5.6 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 11 Ohms
- Current - Reverse Leakage @ Vr: 5 µA @ 3 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: 175°C
- Mounting Type: Surface Mount
- Package / Case: DO-213AC, MINI-MELF, SOD-80
- Supplier Device Package: SOD-80 MiniMELF
Related Products
Microchip Technology
JAN1N4125DUR-1
Solid State Inc.
1N3999R
Vishay General Semiconductor - Diodes Division
BZG04-120-M3-18
Microchip Technology
JANTXV1N4121CUR-1/TR
Microchip Technology
JANTXV1N3042BUR-1
Central Semiconductor Corp
CMDZ11L TR PBFREE
Taiwan Semiconductor Corporation
1N4757AH
Microchip Technology

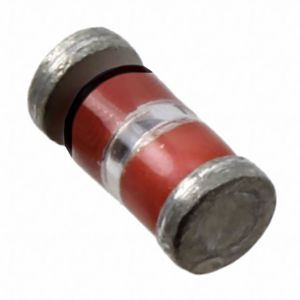

JANTXV1N3825CUR-1
