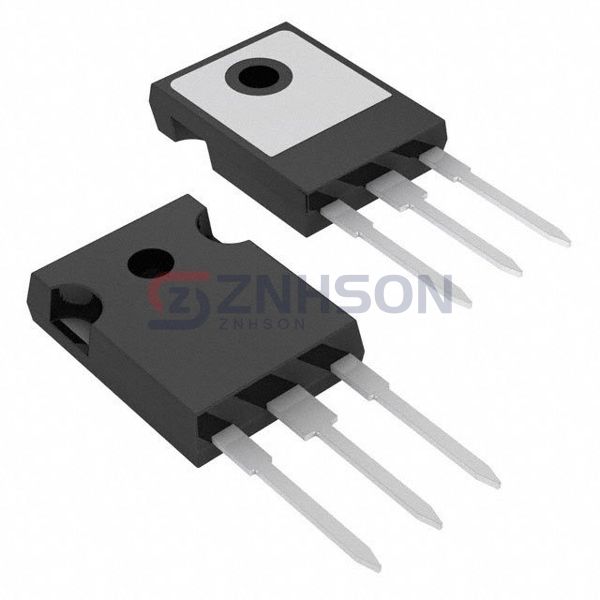

VS-80CPU02-N3
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ARRAY GP 200V 40A TO247AC
$9.07
Available to order
Reference Price (USD)
1+
$8.24000
25+
$7.10000
100+
$6.16500
500+
$5.36842
1,000+
$4.84890
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the VS-80CPU02-N3 by Vishay General Semiconductor - Diodes Division represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Vishay General Semiconductor - Diodes Division's patented junction design, the VS-80CPU02-N3 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200 V
- Current - Average Rectified (Io) (per Diode): 40A
- Voltage - Forward (Vf) (Max) @ If: 1.02 V @ 40 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 33 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 200 V
- Operating Temperature - Junction: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AC
