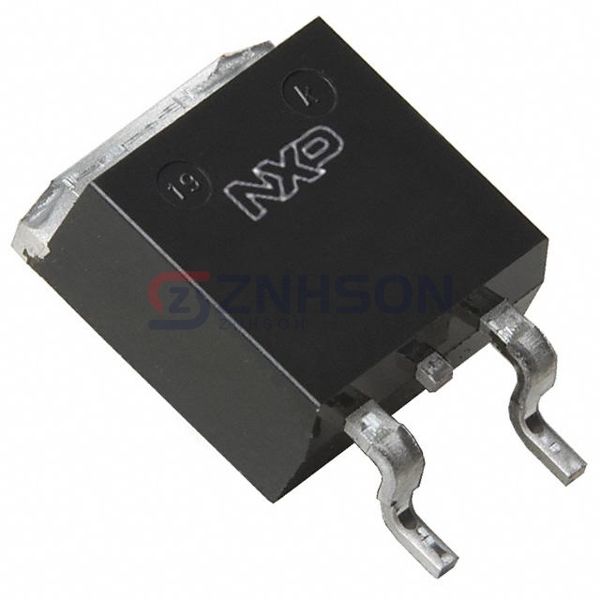

WNS20H100CBJ
WeEn Semiconductors
WeEn Semiconductors
DIODE ARRAY SCHOT 100V 10A D2PAK
$0.85
Available to order
Reference Price (USD)
4,800+
$0.27000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the WNS20H100CBJ by WeEn Semiconductors represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With WeEn Semiconductors's patented junction design, the WNS20H100CBJ achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io) (per Diode): 10A
- Voltage - Forward (Vf) (Max) @ If: 750 mV @ 10 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 50 µA @ 100 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D2PAK
Related Products
onsemi
MSRD620CTRG
onsemi
BAT54CLT1
onsemi
NSR30CM3T5G
GeneSiC Semiconductor
MURT40040
GeneSiC Semiconductor
MUR2X100A04
Vishay General Semiconductor - Diodes Division
SBL3040PT-E3/45
Global Power Technology-GPT
G3S12040B
Powerex Inc.

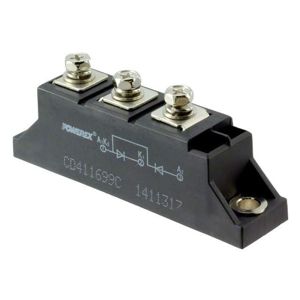

CD411899C
