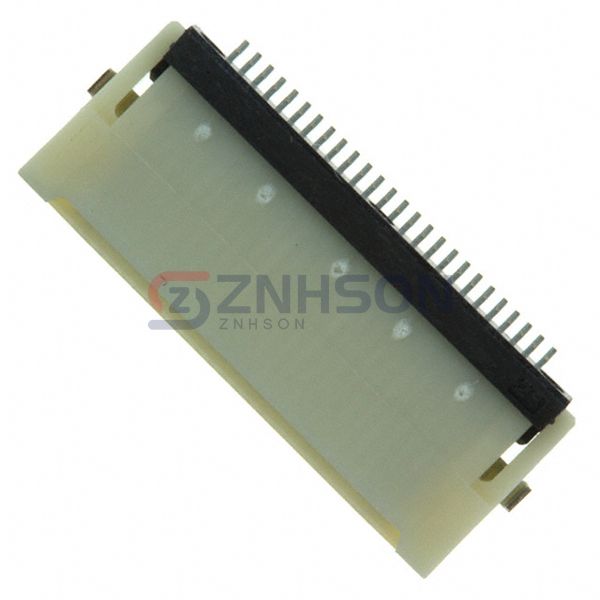

XF2H-2615-1LW
Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div
CONN FPC 26POS 0.50MM R/A
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the XF2H-2615-1LW FFC/FPC Connectors from Omron Electronics Inc-EMC Div, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The XF2H-2615-1LW series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Omron Electronics Inc-EMC Div's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for XF2H-2615-1LW when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Obsolete
- Flat Flex Type: FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top and Bottom
- Number of Positions: 26
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.079" (2.00mm)
- Locking Feature: Rotary Lock, Backlock
- Cable End Type: Straight
- Contact Material: Copper Alloy
- Contact Finish: Tin Alloy
- Housing Material: Polyamide (PA6T), Nylon 6T
- Actuator Material: Liquid Crystal Polymer (LCP)
- Features: -
- Voltage Rating: 50V
- Operating Temperature: -30°C ~ 85°C
- Material Flammability Rating: UL94 V-0
