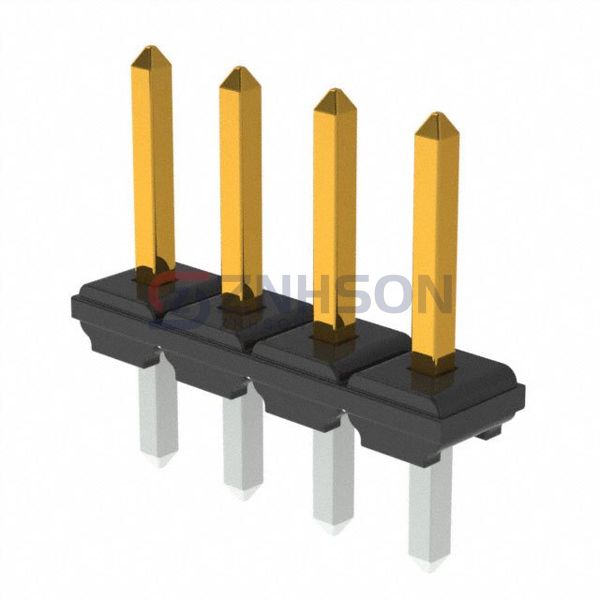

XJ8B-0411
Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div
CONN HEADER VERT 4POS 2.54MM
$0.73
Available to order
Reference Price (USD)
1+
$0.58000
10+
$0.54200
100+
$0.41520
500+
$0.36108
1,000+
$0.29789
5,000+
$0.26178
10,000+
$0.26078
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the XJ8B-0411 rectangular connector header from Omron Electronics Inc-EMC Div. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the XJ8B-0411 is perfect for automotive, industrial, and consumer electronics. Omron Electronics Inc-EMC Div ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.169" (4.30mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.339" (8.60mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.90µin (0.150µm)
- Contact Finish - Post: -
- Contact Material: Brass, Nickel
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 300V
