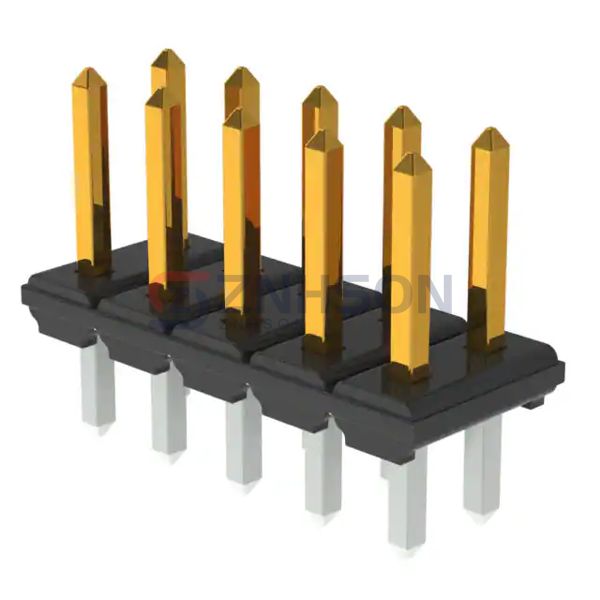

XJ8C-1011
Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div
CONN HEADER VERT 10POS 2.54MM
$2.16
Available to order
Reference Price (USD)
1+
$1.71000
10+
$1.55400
100+
$1.33210
500+
$1.11006
1,000+
$0.95148
5,000+
$0.91624
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the XJ8C-1011 rectangular connector header from Omron Electronics Inc-EMC Div for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Omron Electronics Inc-EMC Div is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.169" (4.30mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.339" (8.60mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.90µin (0.150µm)
- Contact Finish - Post: -
- Contact Material: Brass, Nickel
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 300V
