Definition:
Mechanical thermostats are temperature-sensing devices that utilize physical mechanisms to monitor and regulate temperature without relying on electronic components. These devices typically employ bimetallic strips, gas-filled bellows, or wax actuators to trigger mechanical switches, making them simple, durable, and cost-effective solutions for temperature control in various applications.
Types of Products in This Category:
1. Bimetallic Thermostats: Use two bonded metals with different thermal expansion rates to actuate a switch at a set temperature.
2. Gas-Actuated Thermostats: Rely on the expansion/contraction of gas-filled bellows to control electrical contacts.
3. Wax Thermostats: Utilize wax pellets that expand when heated, mechanically pushing a rod to open or close a circuit.
4. Line Voltage Thermostats: Designed to directly control high-voltage heating systems without requiring an external relay.
5. Snap-Disc Thermostats: Feature a pre-calibrated disc that snaps to break or make contact at specific temperatures.
Buying Recommendations:
- Application Compatibility: Ensure the thermostat s temperature range and switching capacity match your system requirements (e.g., HVAC, industrial equipment, or appliances).
- Durability: For harsh environments, opt for models with robust housings (e.g., stainless steel or weatherproof enclosures).
- Accuracy & Calibration: Mechanical thermostats have inherent hysteresis; verify tolerance levels ( 1 C to 5 C) align with your precision needs.
- Certifications: Check for industry-standard certifications (UL, CE, RoHS) to guarantee safety and compliance.
- Installation Type: Select surface-mount, immersion, or insertion models based on your mounting constraints.
Ideal for budget-conscious or high-reliability applications where simplicity is prioritized over programmability, mechanical thermostats remain a staple in temperature control systems.
Filter and sort
Categories
66L075-0263
THERMOSTAT 75DEG C SPST-NC 8DIP

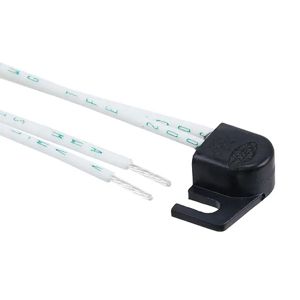

B12A16005DEDB0GE
THERMOSTAT 160DEG C SPST-NC WIRE
67F115-0363
THERMOSTAT 115DEG C NO TO220-2
M2HA 255X
THERMOSTAT 255DEG C 2A HOLE
66L065-0422
THERMOSTAT 65DEG C SPST-NC 4SMD
66L120-0337
THERMOSTAT 120DEG C SPST-NC 8DIP
66F070-0238
THERMOSTAT 70DEG C SPST-NO 8DIP
66F080-0282
THERMOSTAT 80DEG C SPST-NO 8DIP
67L090
THERMOSTAT 90DEG C NC TO220-2
F20A145051ZA0060
THERMOSTAT 145DEG C SPST-NC 2SIP
66L090-0453
THERMOSTAT 90DEG C SPST-NC 8DIP
M2 25XD
THERMOSTAT 25DEG C 5A
67F050-0012
THERMOSTAT 50DEG C NO TO220-2
66L110
THERMOSTAT 110DEG C SPST-NC 8DIP
66F090-0338
THERMOSTAT 90DEG C SPST-NO 8DIP
OHD5R-40B
THERMOSTAT 40DEG C SPST-NC MOD
66L080-0502
THERMOSTAT 80DEG C SPST-NC 8DIP
3600060010001
THERMOSTAT 60DEG C NC TO205AA
M3 20XB
THERMOSTAT 20DEG C 5A HOLE
67F090
THERMOSTAT 90DEG C NO TO220-2
