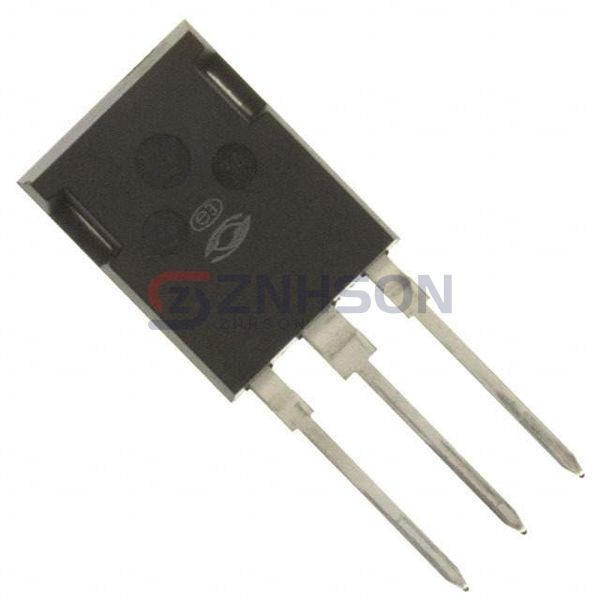

APT100GT60B2RG
Microchip Technology
Microchip Technology
IGBT 600V 148A 500W SOT247
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT100GT60B2RG by Microchip Technology is a high-efficiency Single IGBT transistor, part of the esteemed Discrete Semiconductor Products line. With low on-state voltage and high-speed switching, it is ideal for energy-saving applications. Commonly used in electric vehicles, smart grids, and industrial machinery, the APT100GT60B2RG delivers robust performance. Microchip Technology's commitment to quality ensures a product that meets the rigorous demands of modern electronics. Integrate APT100GT60B2RG into your designs for optimal power control.
Specifications
- Product Status: Active
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 148 A
- Current - Collector Pulsed (Icm): 300 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 100A
- Power - Max: 500 W
- Switching Energy: 3.25mJ (on), 3.125mJ (off)
- Input Type: Standard
- Gate Charge: 460 nC
- Td (on/off) @ 25°C: 40ns/320ns
- Test Condition: 400V, 100A, 4.3Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: -
