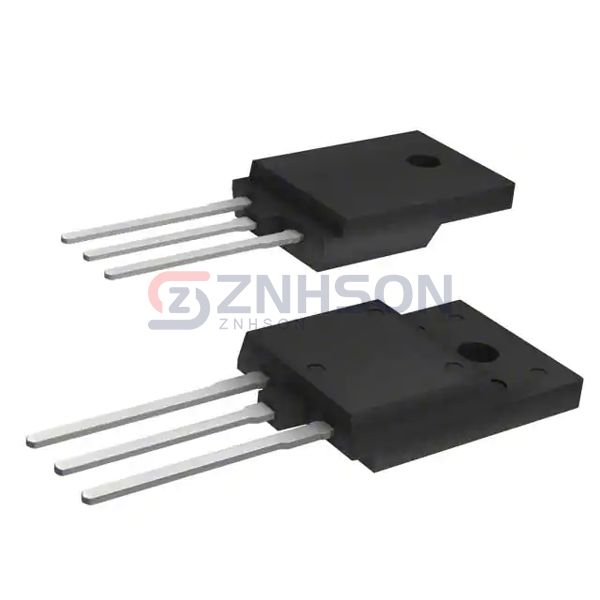

STGFW30V60DF
STMicroelectronics
STMicroelectronics
IGBT 600V 60A 58W TO-3PF
$0.00
Available to order
Reference Price (USD)
1+
$4.46000
30+
$3.82867
120+
$3.35625
510+
$2.89951
1,020+
$2.49000
2,520+
$2.38500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGFW30V60DF by STMicroelectronics is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With STMicroelectronics's reputation for quality, the STGFW30V60DF is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 60 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 30A
- Power - Max: 58 W
- Switching Energy: 383µJ (on), 233µJ (off)
- Input Type: Standard
- Gate Charge: 163 nC
- Td (on/off) @ 25°C: 45ns/189ns
- Test Condition: 400V, 30A, 10Ohm, 15V
- Reverse Recovery Time (trr): 53 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3 Full Pack
- Supplier Device Package: TO-3PF
