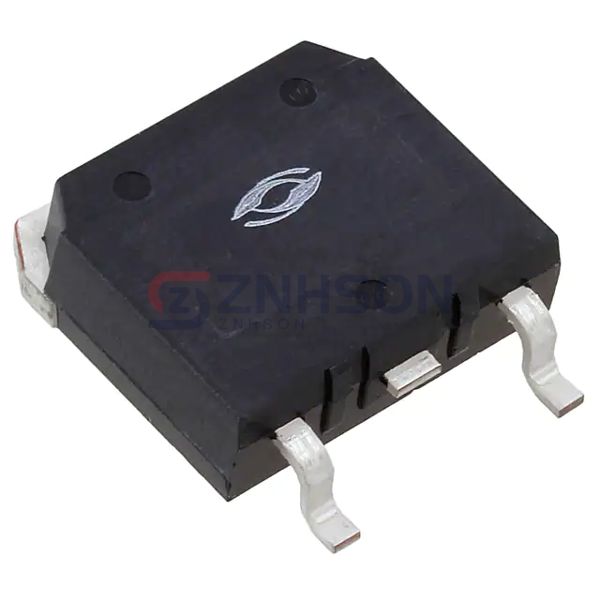

APT36GA60SD15
Microchip Technology
Microchip Technology
IGBT PT COMBI 600V 36A TO-268
$7.93
Available to order
Reference Price (USD)
1+
$7.92886
500+
$7.8495714
1000+
$7.7702828
1500+
$7.6909942
2000+
$7.6117056
2500+
$7.532417
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with the APT36GA60SD15 Single IGBT transistor from Microchip Technology. This Discrete Semiconductor Product is engineered for precision and efficiency, offering superior thermal performance and low EMI characteristics. Ideal for applications like electric vehicle charging stations, renewable energy systems, and industrial automation, the APT36GA60SD15 delivers consistent and reliable operation. Trust Microchip Technology's expertise in semiconductor technology to enhance your power management solutions with this high-quality IGBT.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 65 A
- Current - Collector Pulsed (Icm): 109 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 20A
- Power - Max: 290 W
- Switching Energy: 307µJ (on), 254µJ (off)
- Input Type: Standard
- Gate Charge: 102 nC
- Td (on/off) @ 25°C: 16ns/122ns
- Test Condition: 400V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 19 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
- Supplier Device Package: D3PAK
