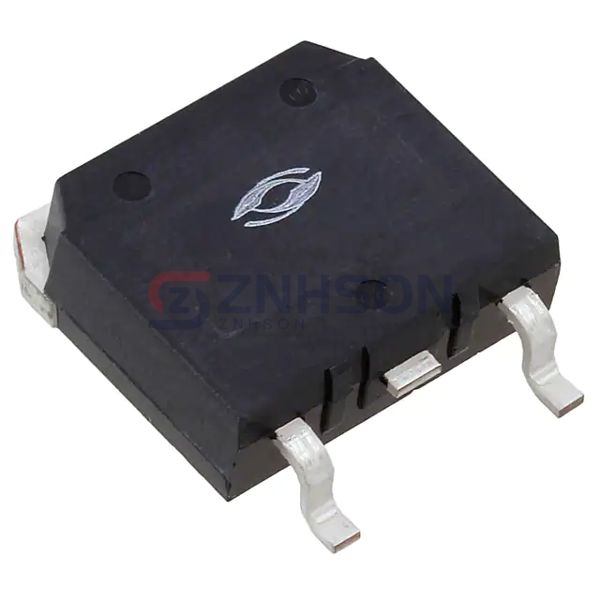

APT40GP60SG
Microsemi Corporation
Microsemi Corporation
IGBT 600V 100A 543W D3PAK
$0.00
Available to order
Reference Price (USD)
43+
$11.72953
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with the APT40GP60SG Single IGBT transistor from Microsemi Corporation. This Discrete Semiconductor Product is engineered for precision and efficiency, offering superior thermal performance and low EMI characteristics. Ideal for applications like electric vehicle charging stations, renewable energy systems, and industrial automation, the APT40GP60SG delivers consistent and reliable operation. Trust Microsemi Corporation's expertise in semiconductor technology to enhance your power management solutions with this high-quality IGBT.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 100 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2.7V @ 15V, 40A
- Power - Max: 543 W
- Switching Energy: 385µJ (on), 352µJ (off)
- Input Type: Standard
- Gate Charge: 135 nC
- Td (on/off) @ 25°C: 20ns/64ns
- Test Condition: 400V, 40A, 5Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
- Supplier Device Package: D3 [S]
