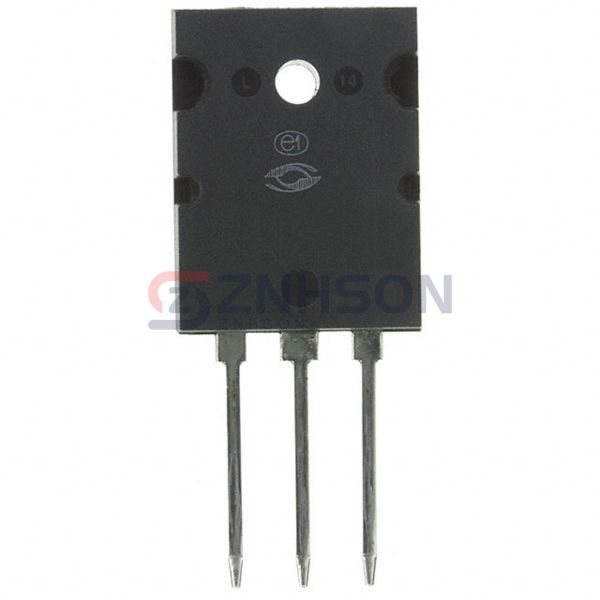

APT50GN120L2DQ2G
Microchip Technology
Microchip Technology
IGBT 1200V 134A 543W TO264
$17.94
Available to order
Reference Price (USD)
1+
$19.04000
10+
$17.30700
25+
$16.00920
100+
$14.71130
250+
$13.41320
500+
$12.54784
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT50GN120L2DQ2G by Microchip Technology is a high-efficiency Single IGBT transistor, part of the esteemed Discrete Semiconductor Products line. With low on-state voltage and high-speed switching, it is ideal for energy-saving applications. Commonly used in electric vehicles, smart grids, and industrial machinery, the APT50GN120L2DQ2G delivers robust performance. Microchip Technology's commitment to quality ensures a product that meets the rigorous demands of modern electronics. Integrate APT50GN120L2DQ2G into your designs for optimal power control.
Specifications
- Product Status: Active
- IGBT Type: NPT, Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 134 A
- Current - Collector Pulsed (Icm): 150 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 50A
- Power - Max: 543 W
- Switching Energy: 4495µJ (off)
- Input Type: Standard
- Gate Charge: 315 nC
- Td (on/off) @ 25°C: 28ns/320ns
- Test Condition: 800V, 50A, 2.2Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: -
