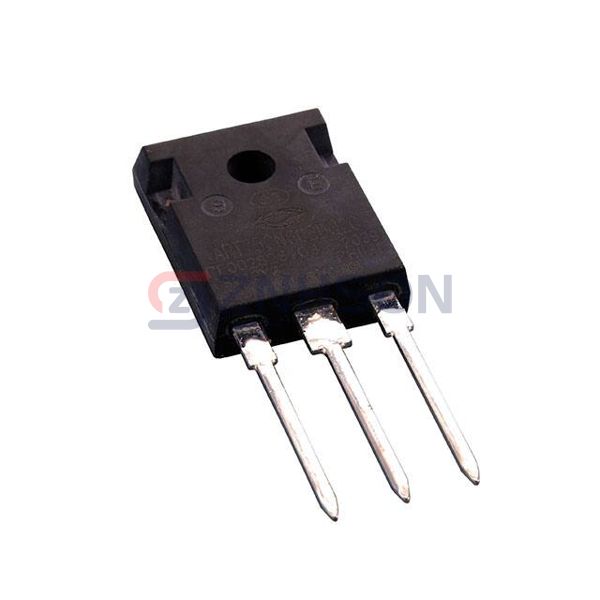

APT75GN60BDQ2G
Microchip Technology
Microchip Technology
IGBT FIELDSTOP SINGLE 600V 75A T
$10.12
Available to order
Reference Price (USD)
1+
$10.12000
500+
$10.0188
1000+
$9.9176
1500+
$9.8164
2000+
$9.7152
2500+
$9.614
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the APT75GN60BDQ2G Single IGBT transistor from Microchip Technology. This Discrete Semiconductor Product offers exceptional performance with low switching losses and high current capacity. Suitable for applications such as medical equipment, aerospace systems, and consumer electronics, the APT75GN60BDQ2G ensures precision and reliability. Microchip Technology's cutting-edge technology guarantees a component that meets the highest industry standards. Choose APT75GN60BDQ2G for efficient and durable power solutions.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 155 A
- Current - Collector Pulsed (Icm): 225 A
- Vce(on) (Max) @ Vge, Ic: 1.85V @ 15V, 75A
- Power - Max: 536 W
- Switching Energy: 2.5mJ (on), 2.14mJ (off)
- Input Type: Standard
- Gate Charge: 485 nC
- Td (on/off) @ 25°C: 47ns/385ns
- Test Condition: 400V, 75A, 1Ohm, 15V
- Reverse Recovery Time (trr): 25 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
