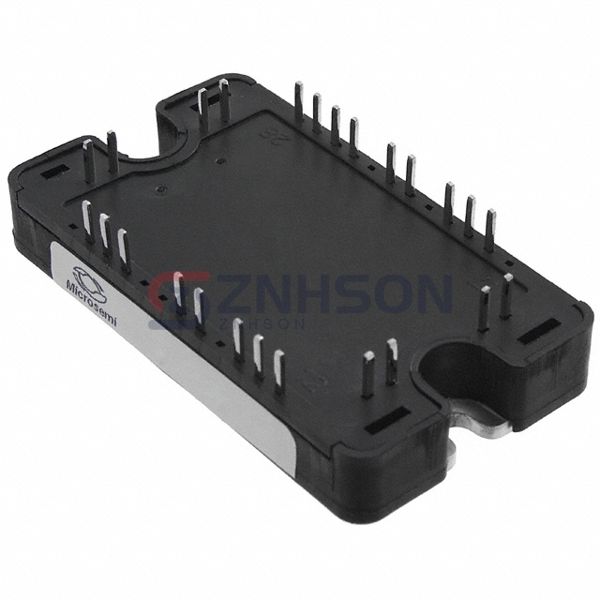

APTGF150A120T3AG
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 210A 1041W SP3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTGF150A120T3AG from Microchip Technology is a high-performance IGBT module designed for power electronics applications. As part of the Discrete Semiconductor Products category, this transistor module offers exceptional efficiency and reliability. Key features include low saturation voltage, high-speed switching, and robust thermal performance. These IGBT modules are widely used in industrial motor drives, renewable energy systems, and electric vehicle powertrains. For example, the APTGF150A120T3AG is ideal for solar inverters, welding equipment, and UPS systems where high power handling is required. Choose Microchip Technology's advanced IGBT technology for your most demanding power conversion challenges.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 210 A
- Power - Max: 1041 W
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 150A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 9.3 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP3
- Supplier Device Package: SP3
