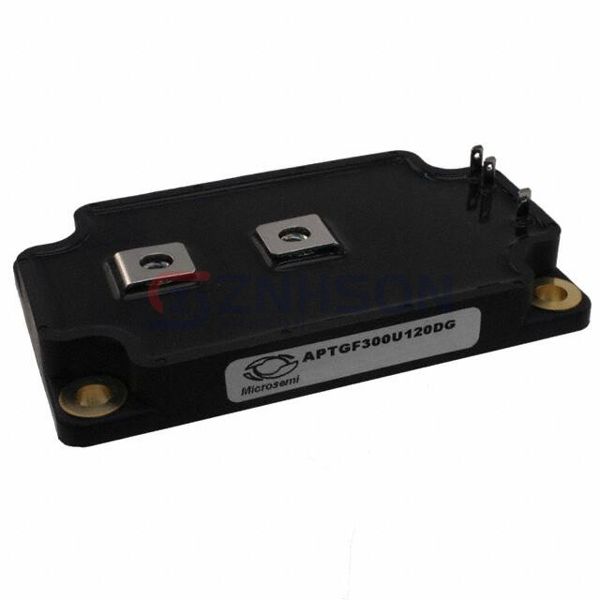

APTGF300U120DG
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 400A 1780W SP6
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's APTGF300U120DG represents the cutting edge in Transistors - IGBTs - Modules technology. This discrete semiconductor product delivers superior power control with its optimized gate-drive characteristics and short-circuit ruggedness. The module's innovative design features include an advanced NPT trench construction and low inductance package. Primary applications include traction systems, induction heating, and high-frequency power supplies. A typical use case would be implementing the APTGF300U120DG in industrial servo drives or medium-voltage frequency converters. Trust Microchip Technology's expertise in IGBT modules for energy-efficient power management solutions.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 400 A
- Power - Max: 1780 W
- Vce(on) (Max) @ Vge, Ic: 3.9V @ 15V, 300A
- Current - Collector Cutoff (Max): 500 µA
- Input Capacitance (Cies) @ Vce: 21 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP6
- Supplier Device Package: SP6
