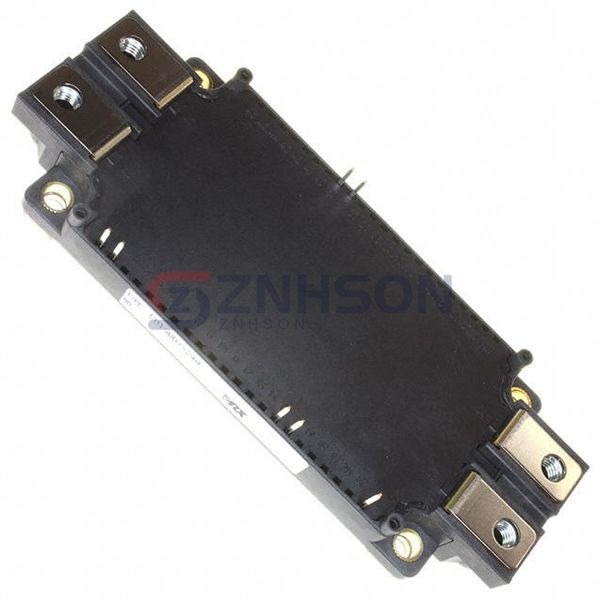

CM150DX-24A
Powerex Inc.
Powerex Inc.
IGBT MOD 1200V 150A 960W
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-generation power control with Powerex Inc.'s CM150DX-24A IGBT module. As a leader in Discrete Semiconductor Products, this transistor module features state-of-the-art trench gate technology and advanced carrier lifetime control. The CM150DX-24A offers: symmetrical blocking capability, low switching losses, and excellent cosmic ray robustness. Target applications include electric bus charging infrastructure, industrial plasma generators, and high-power laser drivers. Implement the CM150DX-24A in your next-generation HVDC systems or particle accelerator power supplies. Powerex Inc. delivers reliability where it matters most with the CM150DX-24A IGBT module.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 150 A
- Power - Max: 960 W
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 150A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 23 nF @ 10 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
