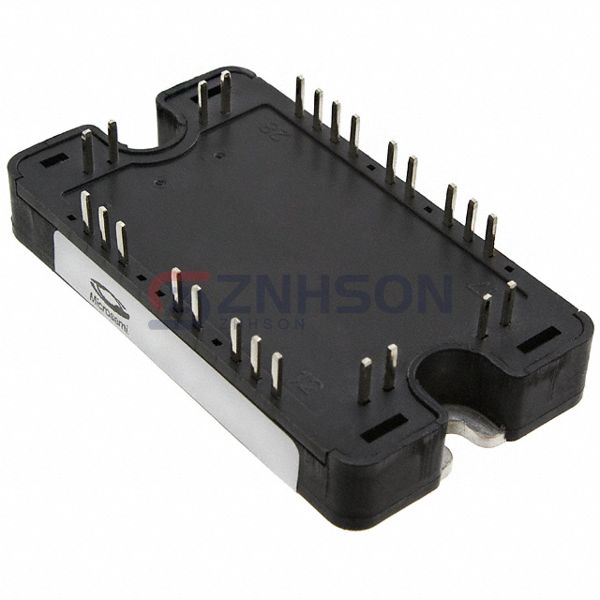

APTGF50VDA60T3G
Microchip Technology
Microchip Technology
IGBT MODULE 600V 65A 250W SP3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the power of Microchip Technology's APTGF50VDA60T3G, a premium IGBT module in the Transistors - IGBTs - Modules classification. This discrete semiconductor solution offers ultra-low conduction losses and avalanche ruggedness for harsh environments. The module's unique selling points include: VCE(sat) negative temperature coefficient, aluminum nitride substrate, and press-pack technology. Major application sectors include rail transportation, marine propulsion, and aerospace power systems. The APTGF50VDA60T3G performs exceptionally well in high-voltage DC transmission and pulsed power applications. With Microchip Technology's APTGF50VDA60T3G, you get unmatched reliability in power electronics designs.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Dual Boost Chopper
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 65 A
- Power - Max: 250 W
- Vce(on) (Max) @ Vge, Ic: 2.45V @ 15V, 50A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 2.2 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP3
- Supplier Device Package: SP3
