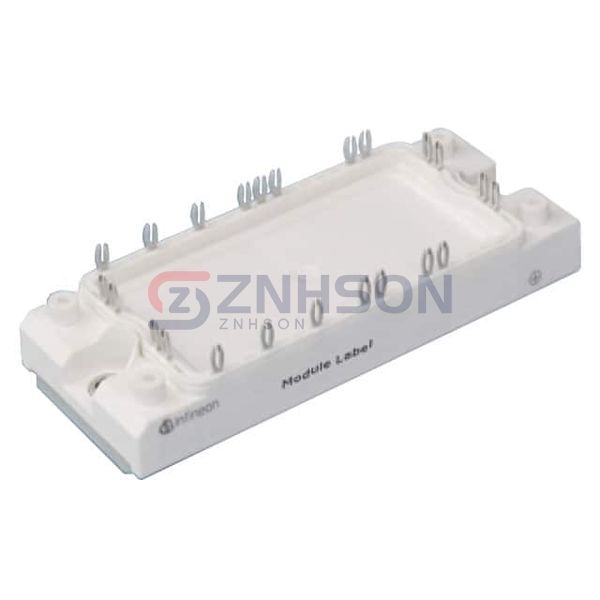

FS50R12U1T4BPSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1200V 90A 250W
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with Infineon Technologies's FS50R12U1T4BPSA1, a high-efficiency IGBT module in the Discrete Semiconductor Products range. This transistor module incorporates seventh-generation micro-pattern trench technology for minimal conduction losses. Special features include: integrated gate driver compatibility, SCADA-ready monitoring interfaces, and corrosion-resistant terminals. Application areas cover industrial cranes, subway power networks, and large-scale battery storage systems. The FS50R12U1T4BPSA1 is particularly effective in high-ambient-temperature environments like steel mill drives. Infineon Technologies brings decades of semiconductor expertise to every FS50R12U1T4BPSA1 module.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 90 A
- Power - Max: 250 W
- Vce(on) (Max) @ Vge, Ic: 2.15V @ 15V, 50A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 100 pF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
Related Products
Vishay General Semiconductor - Diodes Division
GA400TD25S
Powerex Inc.
CM300DY-24S
Powerex Inc.
CM150RX-24S
SemiQ
GSID600A120S4B1
Microchip Technology
APT50GT120JU2
Littelfuse Inc.
MG1215H-XBN2MM
Littelfuse Inc.
MG1275S-BA1MM
Infineon Technologies
6MS24017E33W32859NOSA1
Microsemi Corporation

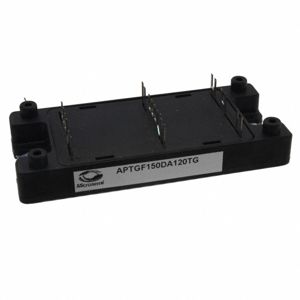

APTGF150DA120TG
