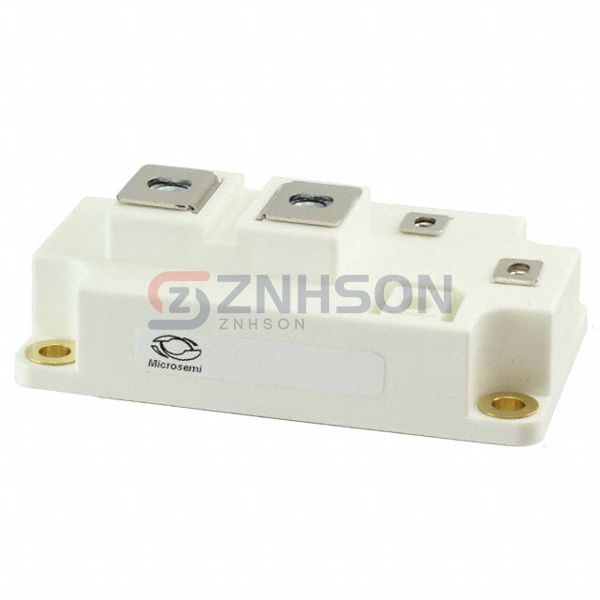

APTGT600U120D4G
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 900A 2500W D4
$311.03
Available to order
Reference Price (USD)
1+
$150.91000
10+
$143.62700
25+
$138.42360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-generation power control with Microchip Technology's APTGT600U120D4G IGBT module. As a leader in Discrete Semiconductor Products, this transistor module features state-of-the-art trench gate technology and advanced carrier lifetime control. The APTGT600U120D4G offers: symmetrical blocking capability, low switching losses, and excellent cosmic ray robustness. Target applications include electric bus charging infrastructure, industrial plasma generators, and high-power laser drivers. Implement the APTGT600U120D4G in your next-generation HVDC systems or particle accelerator power supplies. Microchip Technology delivers reliability where it matters most with the APTGT600U120D4G IGBT module.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 900 A
- Power - Max: 2500 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 600A
- Current - Collector Cutoff (Max): 5 mA
- Input Capacitance (Cies) @ Vce: 40 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: D4
- Supplier Device Package: D4
