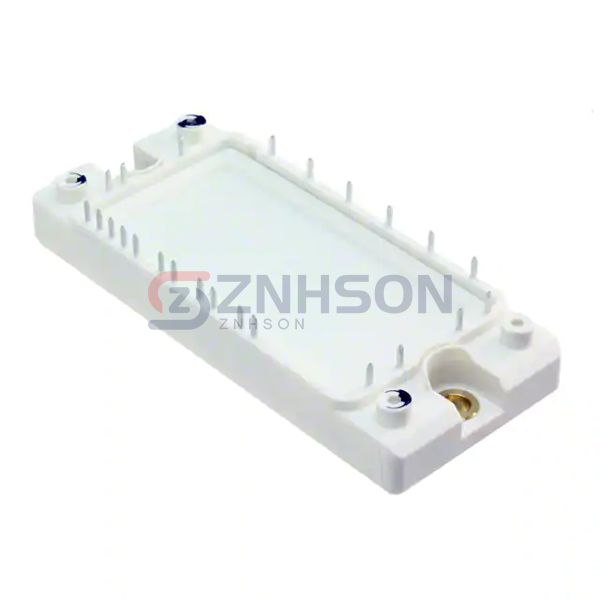

BSM35GP120BOSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1200V 45A 230W
$0.00
Available to order
Reference Price (USD)
1+
$127.34000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Infineon Technologies's BSM35GP120BOSA1 represents the cutting edge in Transistors - IGBTs - Modules technology. This discrete semiconductor product delivers superior power control with its optimized gate-drive characteristics and short-circuit ruggedness. The module's innovative design features include an advanced NPT trench construction and low inductance package. Primary applications include traction systems, induction heating, and high-frequency power supplies. A typical use case would be implementing the BSM35GP120BOSA1 in industrial servo drives or medium-voltage frequency converters. Trust Infineon Technologies's expertise in IGBT modules for energy-efficient power management solutions.
Specifications
- Product Status: Discontinued at Digi-Key
- IGBT Type: NPT
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 45 A
- Power - Max: 230 W
- Vce(on) (Max) @ Vge, Ic: -
- Current - Collector Cutoff (Max): 500 µA
- Input Capacitance (Cies) @ Vce: 1.5 nF @ 25 V
- Input: -
- NTC Thermistor: Yes
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: Module
- Supplier Device Package: Module
