CPV362M4U
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
IGBT MODULE 600V 7.2A 23W IMS-2
$0.00
Available to order
Reference Price (USD)
160+
$33.35000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-generation power control with Vishay General Semiconductor - Diodes Division's CPV362M4U IGBT module. As a leader in Discrete Semiconductor Products, this transistor module features state-of-the-art trench gate technology and advanced carrier lifetime control. The CPV362M4U offers: symmetrical blocking capability, low switching losses, and excellent cosmic ray robustness. Target applications include electric bus charging infrastructure, industrial plasma generators, and high-power laser drivers. Implement the CPV362M4U in your next-generation HVDC systems or particle accelerator power supplies. Vishay General Semiconductor - Diodes Division delivers reliability where it matters most with the CPV362M4U IGBT module.
Specifications
- Product Status: Active
- IGBT Type: -
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 7.2 A
- Power - Max: 23 W
- Vce(on) (Max) @ Vge, Ic: 1.95V @ 15V, 7.2A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 530 pF @ 30 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: 19-SIP (13 Leads), IMS-2
- Supplier Device Package: IMS-2
Related Products
Microchip Technology
APT40GF120JRDQ2
Infineon Technologies
FF600R12ME4B73BPSA1
Microsemi Corporation
APT50GF60JCU2
Vishay General Semiconductor - Diodes Division
VS-GB75LA60UF
Powerex Inc.
CM400DU-12NFH
Powerex Inc.
CM300DX-12A
Littelfuse Inc.
MG06100S-BN4MM
SemiQ

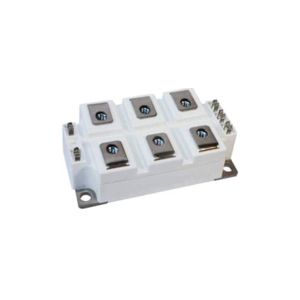

GSID150A120S6A4
Microsemi Corporation

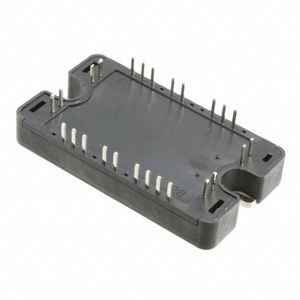

APTGF150A120T3WG
