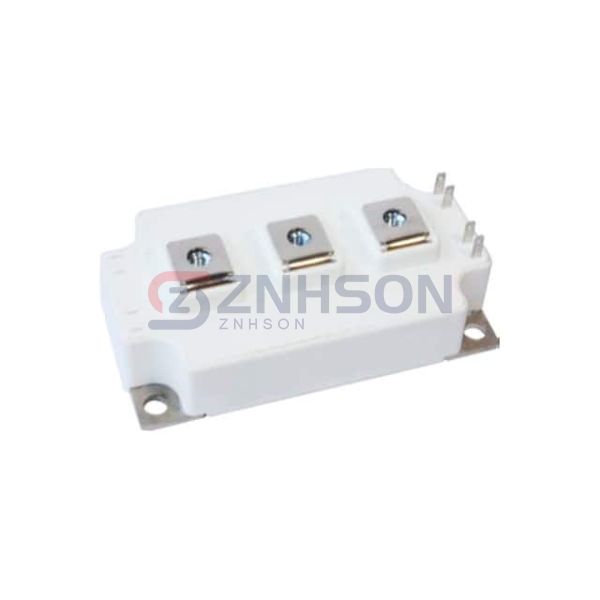

GSID150A120S3B1
SemiQ
SemiQ
IGBT MODULE 1200V 300A 940W D3
$0.00
Available to order
Reference Price (USD)
8+
$86.72125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the GSID150A120S3B1 IGBT module by SemiQ sets new standards in the Discrete Semiconductor Products market. This power transistor module combines high current density with excellent thermal cycling capability. Its standout features include positive temperature coefficient for easy paralleling and built-in temperature monitoring. The GSID150A120S3B1 finds perfect application in electric vehicle charging stations, wind turbine converters, and robotic automation systems. For instance, this module excels in high-power SMPS designs requiring >100kHz switching frequencies. SemiQ continues to lead the IGBT module revolution with innovations like the GSID150A120S3B1.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: 2 Independent
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 300 A
- Power - Max: 940 W
- Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 150A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 14 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Chassis Mount
- Package / Case: D-3 Module
- Supplier Device Package: D3
