FF225R12ME4B11BPSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1200V 320A 1050W
$0.00
Available to order
Reference Price (USD)
6+
$115.10333
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the FF225R12ME4B11BPSA1 IGBT module by Infineon Technologies sets new standards in the Discrete Semiconductor Products market. This power transistor module combines high current density with excellent thermal cycling capability. Its standout features include positive temperature coefficient for easy paralleling and built-in temperature monitoring. The FF225R12ME4B11BPSA1 finds perfect application in electric vehicle charging stations, wind turbine converters, and robotic automation systems. For instance, this module excels in high-power SMPS designs requiring >100kHz switching frequencies. Infineon Technologies continues to lead the IGBT module revolution with innovations like the FF225R12ME4B11BPSA1.
Specifications
- Product Status: Discontinued at Digi-Key
- IGBT Type: Trench Field Stop
- Configuration: 2 Independent
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 320 A
- Power - Max: 1050 W
- Vce(on) (Max) @ Vge, Ic: 2.15V @ 15V, 225A
- Current - Collector Cutoff (Max): 3 mA
- Input Capacitance (Cies) @ Vce: 13 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
Related Products
Vishay General Semiconductor - Diodes Division
CPV363M4U
Infineon Technologies
FP25R12KT4B11BOSA1
Powerex Inc.
CM400HA-24A
Vishay General Semiconductor - Diodes Division
VS-GB90DA60U
Infineon Technologies
FF600R12ME4CB11BOSA1
Powerex Inc.

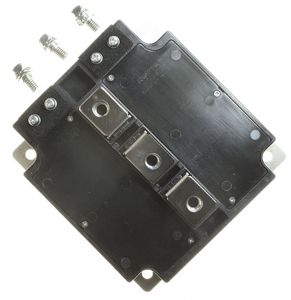

CM600DU-24NF
Powerex Inc.

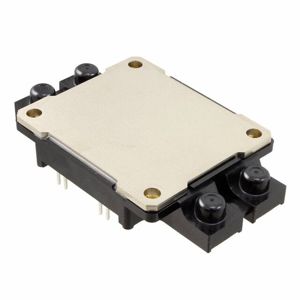

CM200EXS-34SA
Powerex Inc.

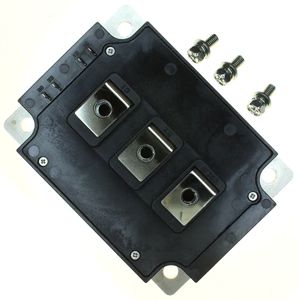

CM300DY-24NF
