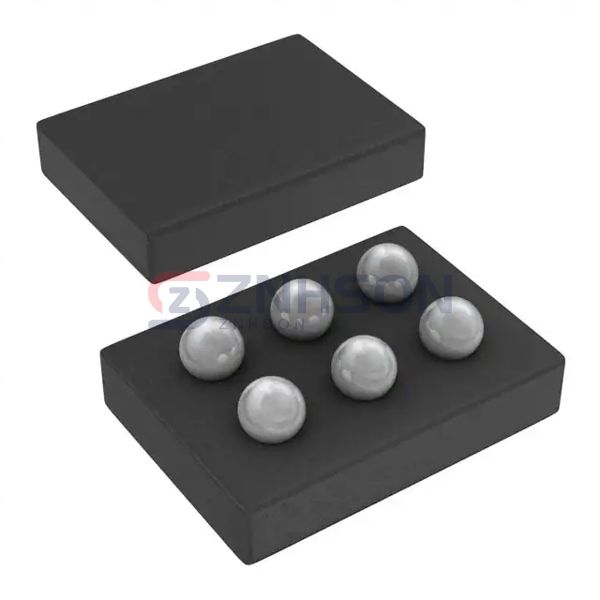

CSD13306WT
Texas Instruments
Texas Instruments
MOSFET N-CH 12V 3.5A 6DSBGA
$1.15
Available to order
Reference Price (USD)
250+
$0.36040
500+
$0.30600
750+
$0.26520
1,250+
$0.23800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD13306WT from Texas Instruments sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Texas Instruments's CSD13306WT for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 12 V
- Current - Continuous Drain (Id) @ 25°C: 3.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 10.2mOhm @ 1.5A, 4.5V
- Vgs(th) (Max) @ Id: 1.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 11.2 nC @ 4.5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 1370 pF @ 6 V
- FET Feature: -
- Power Dissipation (Max): 1.9W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-DSBGA (1x1.5)
- Package / Case: 6-UFBGA, DSBGA
Related Products
onsemi
MCH3375-TL-H
Rohm Semiconductor
RCX051N25
Toshiba Semiconductor and Storage
SSM3K336R,LF
Infineon Technologies
IPD90N06S404ATMA2
Fairchild Semiconductor
FDD6676
Renesas Electronics America Inc
RJK0358DSP-00#J0
Taiwan Semiconductor Corporation

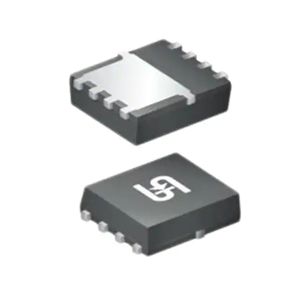

TSM150P03PQ33 RGG
Vishay Siliconix

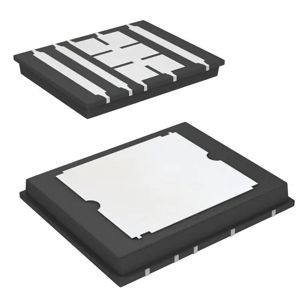

SIE812DF-T1-E3
Vishay Siliconix

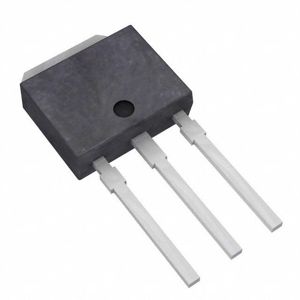

SIHU5N80AE-GE3
