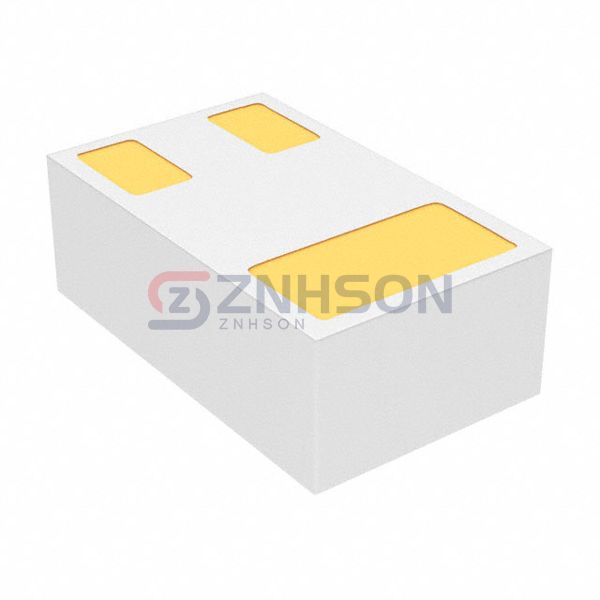

CSD13383F4T

Texas Instruments
CSD13383F4T Preview
Texas Instruments
MOSFET N-CH 12V 2.9A 3PICOSTAR
$0.94
Available to order
Reference Price (USD)
1+
$0.94000
500+
$0.9306
1000+
$0.9212
1500+
$0.9118
2000+
$0.9024
2500+
$0.893
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 12 V
  • Current - Continuous Drain (Id) @ 25°C: 2.9A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
  • Rds On (Max) @ Id, Vgs: 44mOhm @ 500mA, 4.5V
  • Vgs(th) (Max) @ Id: 1.25V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 2.6 nC @ 4.5 V
  • Vgs (Max): ±10V
  • Input Capacitance (Ciss) (Max) @ Vds: 291 pF @ 6 V
  • FET Feature: -
  • Power Dissipation (Max): 500mW (Ta)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 3-PICOSTAR
  • Package / Case: 3-XFDFN

Related Products

Diodes Incorporated

DMP6185SEQ-13

Infineon Technologies

IPS70R950CEAKMA1

Infineon Technologies

IPC90N04S5L3R3ATMA1

Alpha & Omega Semiconductor Inc.

AON6282

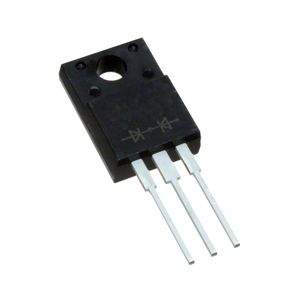

Taiwan Semiconductor Corporation

TSM60NB099CF C0G

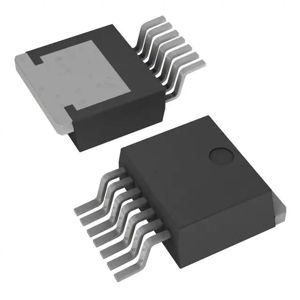

STMicroelectronics

SCTH40N120G2V7AG

Vishay Siliconix

SIS862ADN-T1-GE3

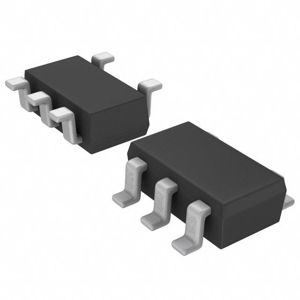

Rohm Semiconductor
