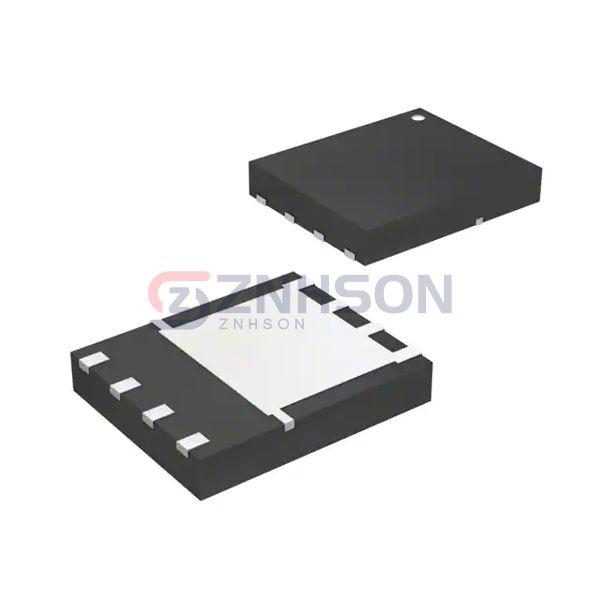

CSD18532NQ5B
Texas Instruments
Texas Instruments
MOSFET N-CH 60V 22A/100A 8VSON
$2.73
Available to order
Reference Price (USD)
1+
$2.73000
500+
$2.7027
1000+
$2.6754
1500+
$2.6481
2000+
$2.6208
2500+
$2.5935
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the CSD18532NQ5B by Texas Instruments, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The CSD18532NQ5B stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Texas Instruments.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Ta), 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 3.4mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 3.4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 64 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 5340 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 3.2W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSON-CLIP (5x6)
- Package / Case: 8-PowerTDFN
