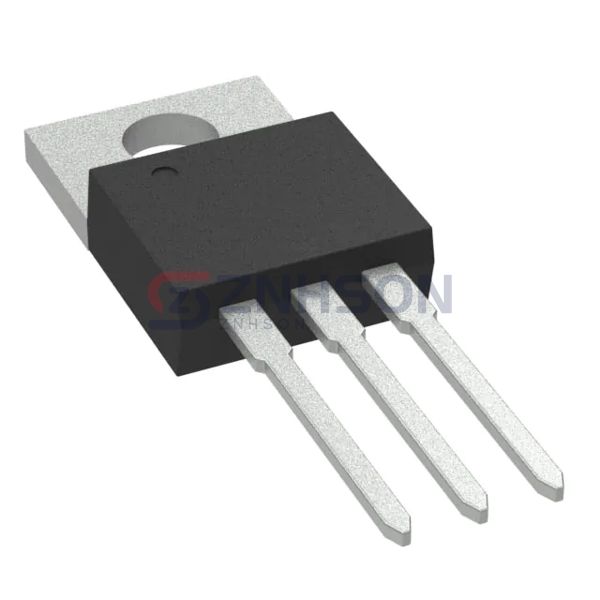

CSD19503KCS
Texas Instruments
Texas Instruments
MOSFET N-CH 80V 100A TO220-3
$1.92
Available to order
Reference Price (USD)
1+
$1.62000
10+
$1.46400
50+
$1.30760
100+
$1.17680
500+
$0.91526
1,000+
$0.75835
2,500+
$0.73220
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the CSD19503KCS by Texas Instruments, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the CSD19503KCS is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 80 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 9.2mOhm @ 60A, 10V
- Vgs(th) (Max) @ Id: 3.4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 36 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2730 pF @ 40 V
- FET Feature: -
- Power Dissipation (Max): 188W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220-3
- Package / Case: TO-220-3
