DM7420N
Fairchild Semiconductor
Fairchild Semiconductor

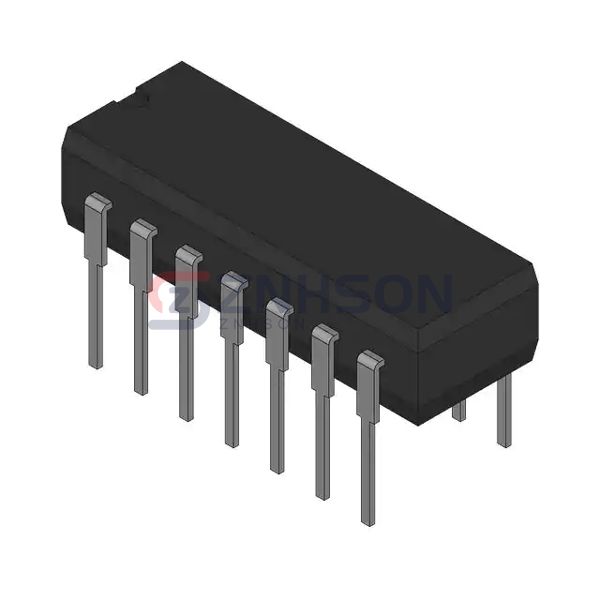

NAND GATE, 4-INPUT, TTL, PDIP14
$0.28
Available to order
Reference Price (USD)
1+
$0.28000
500+
$0.2772
1000+
$0.2744
1500+
$0.2716
2000+
$0.2688
2500+
$0.266
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DM7420N from Fairchild Semiconductor delivers exceptional value in the Logic - Gates and Inverters market segment. This surface-mount IC combines multiple universal logic gates with optimized power-speed performance ratios. Key benefits include latch-up immunity exceeding 500mA and input leakage current below 1 A. Design engineers implement this component in power management systems, digital control circuits, and signal processing applications. Specific use cases include solar inverter controls, elevator logic boards, and industrial sensor networks. The DM7420N's compatibility with automated pick-and-place manufacturing processes makes it an economical choice for high-volume production runs across consumer and industrial sectors.
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 2
- Number of Inputs: 4
- Features: -
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Quiescent (Max): 11 mA
- Current - Output High, Low: 400µA, 16mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 15ns @ 5V, 15pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Through Hole
- Supplier Device Package: 14-DIP
- Package / Case: 14-DIP (0.300", 7.62mm)
