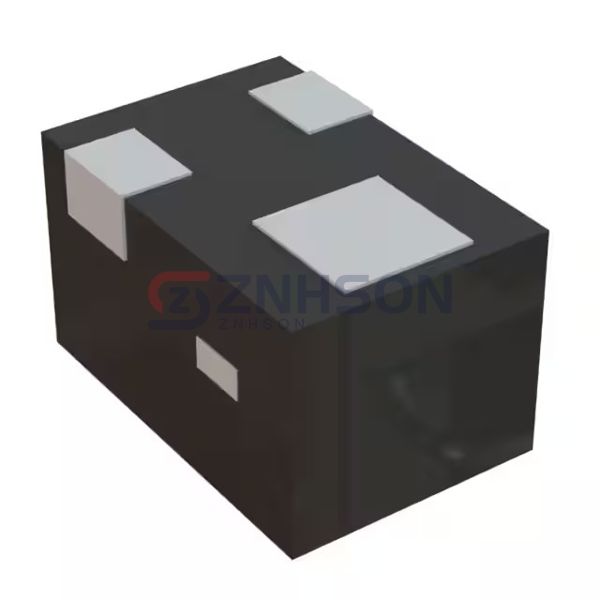

DMP22D5UFO-7B
Diodes Incorporated
Diodes Incorporated
MOSFET BVDSS: 8V~24V X2-DFN0604-
$0.04
Available to order
Reference Price (USD)
1+
$0.04039
500+
$0.0399861
1000+
$0.0395822
1500+
$0.0391783
2000+
$0.0387744
2500+
$0.0383705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the DMP22D5UFO-7B from Diodes Incorporated, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the DMP22D5UFO-7B ensures reliable performance in demanding environments. Upgrade your circuit designs with Diodes Incorporated's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 530mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 1.9Ohm @ 100mA, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.3 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 17 pF @ 16 V
- FET Feature: -
- Power Dissipation (Max): 340mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: X2-DFN0604-3
- Package / Case: 3-XFDFN
