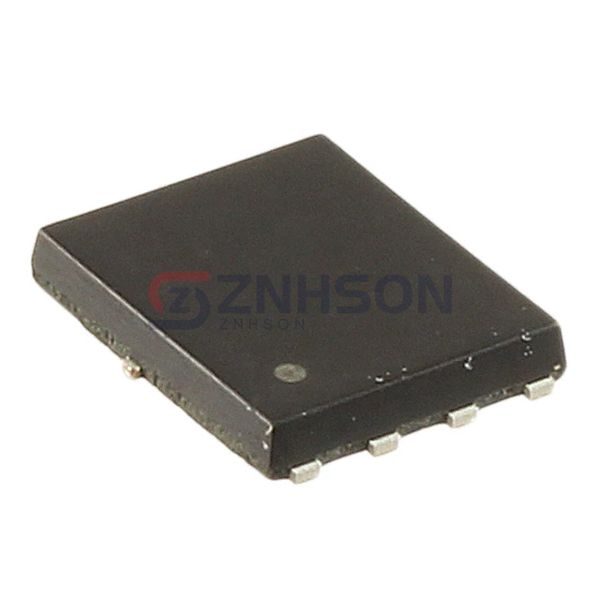

SK8603160L
Panasonic Electronic Components
Panasonic Electronic Components
MOSFET N-CH 30V 22A/70A 8HSO
$1.17
Available to order
Reference Price (USD)
3,000+
$0.52261
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the SK8603160L by Panasonic Electronic Components, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the SK8603160L is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Ta), 70A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.3mOhm @ 17A, 10V
- Vgs(th) (Max) @ Id: 3V @ 3.35mA
- Gate Charge (Qg) (Max) @ Vgs: 22 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3920 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 2.8W (Ta), 28W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: HSO8-F4-B
- Package / Case: 8-PowerSMD, Flat Leads
