EMD38T2R
Rohm Semiconductor
Rohm Semiconductor
PNP+NPN DIGITAL TRANSISTOR (WITH
$0.43
Available to order
Reference Price (USD)
1+
$0.43000
500+
$0.4257
1000+
$0.4214
1500+
$0.4171
2000+
$0.4128
2500+
$0.4085
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your designs with Rohm Semiconductor's EMD38T2R, a pre-biased BJT array built for precision and efficiency. This transistor array simplifies circuit layout by incorporating bias resistors within the package, reducing assembly time and cost. The EMD38T2R is widely used in lighting systems, portable electronics, and automotive accessories. Rohm Semiconductor's innovative approach ensures high yield and consistent quality across all production batches. With excellent thermal management and low power consumption, the EMD38T2R is a smart choice for energy-sensitive applications.
Specifications
- Product Status: Active
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 1kOhms
- Resistor - Emitter Base (R2): 47kOhms, 10kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 68 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 250µA, 5mA, 300mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250MHz
- Power - Max: 150mW
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: EMT6
Related Products
onsemi
NSBA143EDP6T5G
Infineon Technologies
BCR35PNH6433XTMA1
Toshiba Semiconductor and Storage

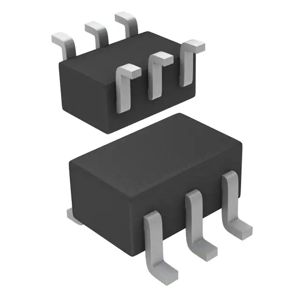

RN1904,LXHF(CT
Toshiba Semiconductor and Storage
RN2711,LF
Nexperia USA Inc.
NHUMH9X
Nexperia USA Inc.
PUMD6,115
onsemi
NSBC115EDXV6T1G
Rohm Semiconductor

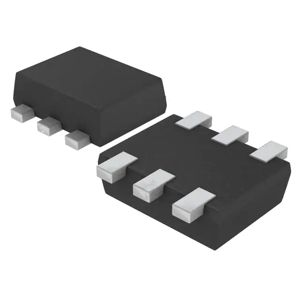

EMH4FHAT2R
