FDP5800
onsemi
onsemi
MOSFET N-CH 60V 14A/80A TO220-3
$3.16
Available to order
Reference Price (USD)
1+
$3.02000
10+
$2.72400
100+
$2.18890
800+
$1.53709
1,600+
$1.41062
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the FDP5800 by onsemi, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the FDP5800 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 14A (Ta), 80A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 6mOhm @ 80A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 145 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 9160 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 242W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220-3
- Package / Case: TO-220-3
Related Products
onsemi
NTD3813N-35G
onsemi
FDMS8050ET30
onsemi
NVMFS5C645NLWFAFT3G
Infineon Technologies
IPSA70R1K4CEAKMA1
Fairchild Semiconductor
FQPF33N10L
onsemi
2SK4101FS
Infineon Technologies
IPS80R600P7AKMA1
STMicroelectronics

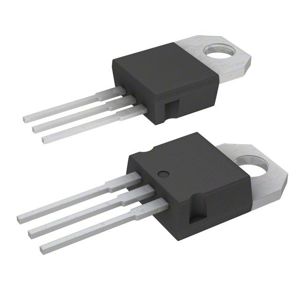

STP130N8F7
Fairchild Semiconductor

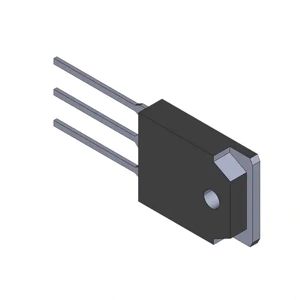

FQA38N30
